Support Vehicle
Tractor
| | |
|---|---|
| | |
| | |
| | |
| | |
| | |
50 mm, 65 mm, 80 mm
Up to 450 mm
40 - 300 m/hr as per soil
Trenchers
Attachment

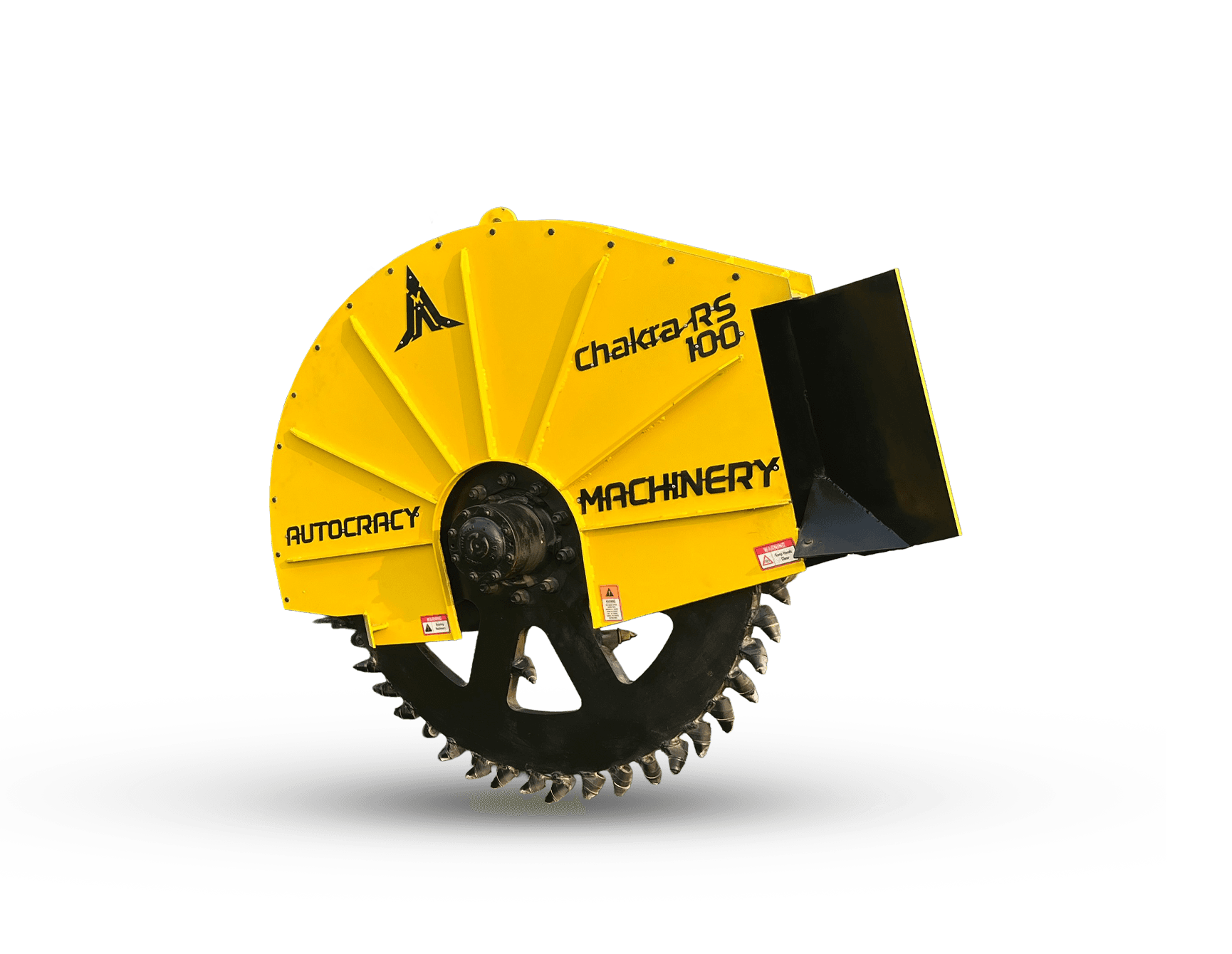

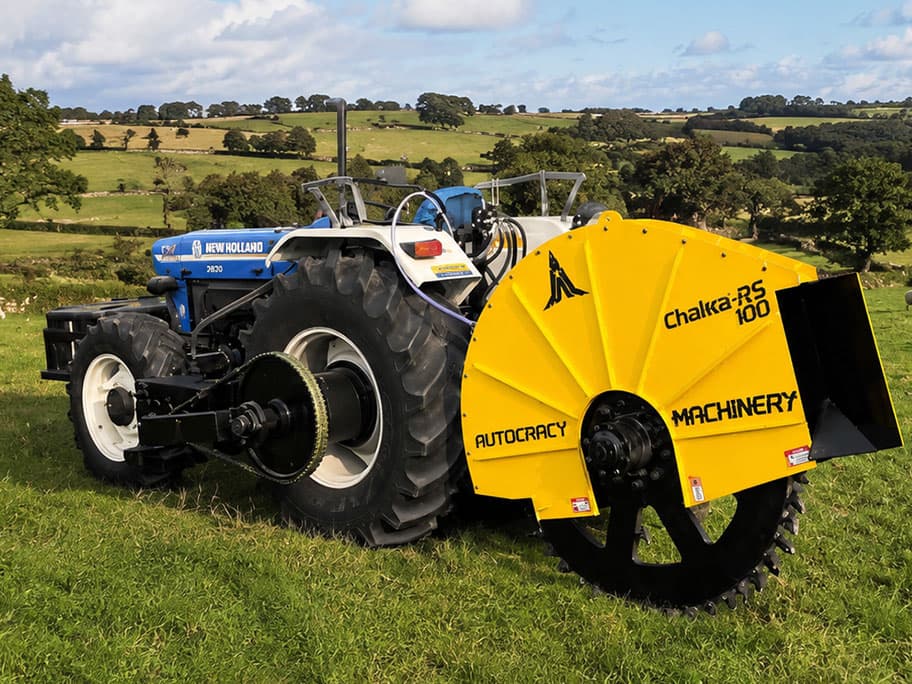

The Chakra RS100 Wheel Trencher is a tractor-mounted trenching machine developed for accurate road cutting and utility trenching on BT roads, CC roads, asphalt surfaces, and compact hard soil conditions. Designed for OFC cable laying, construction utilities, drainage networks, and pipeline infrastructure projects, the machine delivers clean trench profiles with minimal road surface disturbance.
Compatible with 75–105 HP tractors, the machine operates through a PTO-driven transmission system with hydraulic control, ensuring efficient power delivery and stable trenching performance without the need for a separate engine. Its carbide-tipped disc cutting system is engineered for dependable operation in demanding road and infrastructure environments.
The Chakra RS100 Wheel Trencher Machine supports trench widths of 50 mm, 65 mm, and 80 mm with trench depths up to 450 mm, helping contractors achieve precise trench alignment for underground utility installations. Controlled trenching speeds of 40–100 m/hr support consistent productivity across varying soil and surface conditions.
Built as a compact tractor-mounted attachment, the Chakra RS100 Industrial Wheel Trencher helps OFC and construction teams improve trenching accuracy, reduce operational costs, and achieve faster project execution in urban and rural infrastructure applications.
Built for performance. Trusted by contractors, municipalities, and EPC teams across sectors.
Tractor
75–105 HP
PTO / Hydraulic
40–100 m/hr, depending on trench depth and soil condition
50 mm, 65 mm, 80 mm
Up to 450 mm
5–6 L/hr during trenching
>25 LPM
5200 mm
2600 mm
1500 mm
2000 kgs
Carbide-tipped bullet teeth with angle holders
Discover what makes the Wheel Trencher Chakra RS100 stand out from the competition
Tractor-mounted compatibility helps Chakra RS100 deliver stable trenching performance, improved mobility, and efficient execution across OFC and construction infrastructure projects.
75–105 HP tractor compatibility helps Chakra RS100 maintain reliable cutting performance and controlled trenching operation in demanding road conditions.
The PTO / Hydraulic transmission system with differential gearbox support helps Chakra RS100 ensure efficient power transfer and stable cutting performance during continuous trenching operations.
Controlled trenching speeds of 40–100 m/hr help Chakra RS100 maintain consistent productivity across varying trench depths, road surfaces, and soil conditions.
Multiple trench width options of 50 mm, 65 mm, and 80 mm help Chakra RS100 support flexible OFC, telecom, and utility installation requirements.
Hydraulically adjustable trench depth up to 450 mm helps Chakra RS100 achieve precise trench execution for underground cable and utility infrastructure applications.
BEST SUITED FOR INDUSTRIES
Match Wheel Trencher Chakra RS100 with industry use cases where equipment reliability, field output, and site readiness matter most.

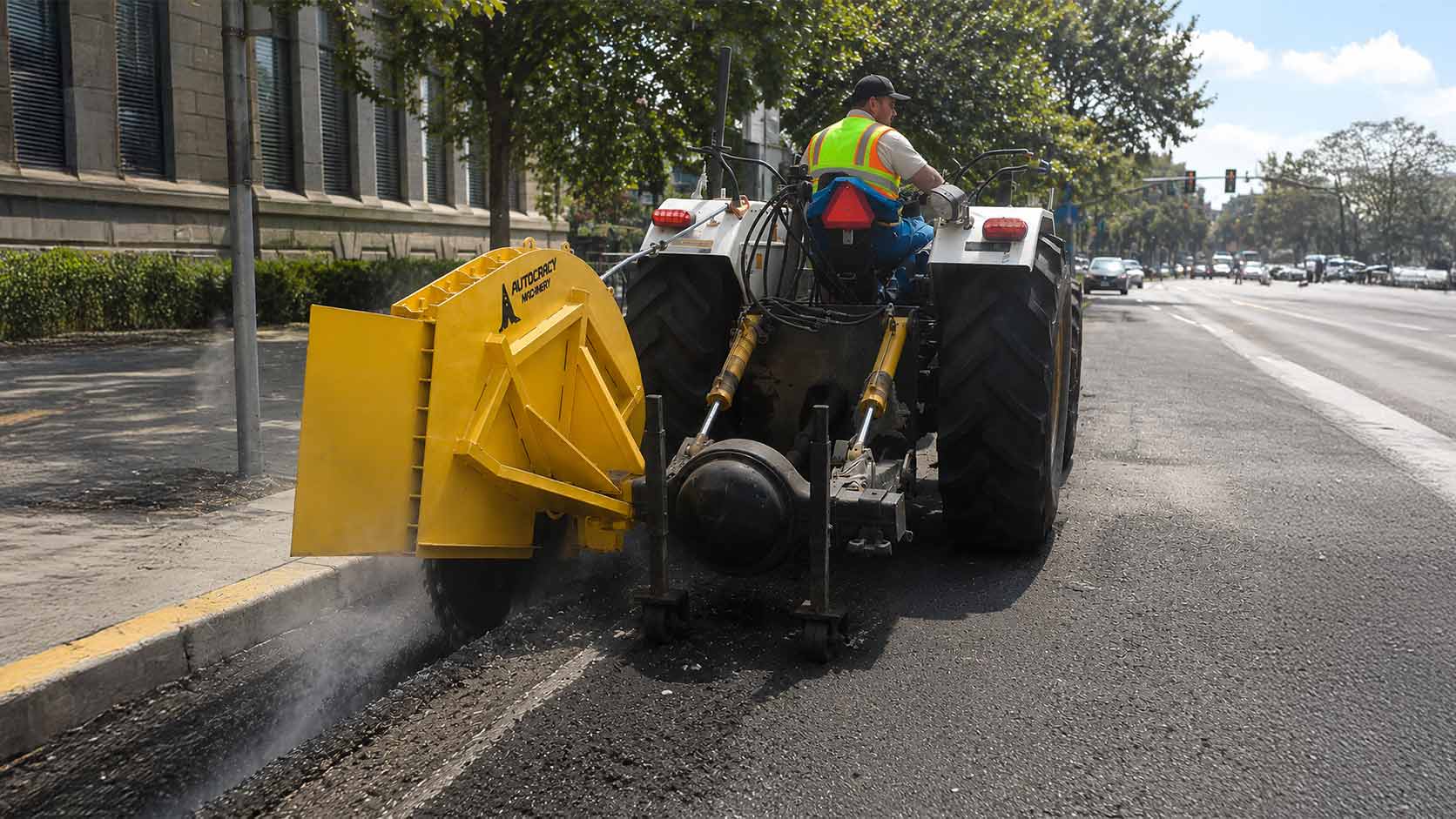

Chakra RS100 is designed for OFC cable laying projects requiring precise trenching on BT roads, CC roads, and asphalt surfaces. It helps create clean and controlled trenches for underground fiber cable installation with minimal surface damage and faster project execution.
Chakra RS100 supports construction and utility infrastructure projects involving drainage systems, pipeline installation, and relevant trenching activities. Its accurate trenching performance and controlled cutting operation help improve execution efficiency across urban and rural construction environments.
PRODUCT FIT
Understand how Wheel Trencher Chakra RS100 fits project planning, field deployment, and daily operating priorities.
Designed for OFC (Optical Fiber Cable) laying, construction utilities, irrigation systems, water drainage, oil & gas pipelines, and telecom infrastructure projects. It is suitable for operations on BT roads, CC roads, asphalt surfaces, and hard compact soils, ensuring reliable trenching performance across varied site conditions.
Enables precise trench planning and execution with controlled cutting speed and adjustable trench width options. Supports predictable daily output, making it ideal for structured OFC deployment and construction project scheduling.
Configured as a tractor-mounted PTO-driven attachment with 75–105 HP compatibility, allowing seamless integration into existing construction fleets without the need for a separate power unit.
Delivers efficient trenching performance for OFC and construction applications with reduced manpower requirements, lower operating costs, and improved accuracy. Ensures clean trench alignment, minimal surface disturbance, and faster project completion even in challenging surface conditions.
Heavy duty trencher | Attachment
PTO driven trencher | Attachment
Common questions about Wheel Trencher Chakra RS100 specifications, applications, and project fit.
Model details
Wheel Trencher Chakra RS100 is a attachment in the Trenchers range, designed to help project teams understand equipment fit, specifications, applications, and support options before work begins.
Concrete cutter
Use the specifications and feature sections to compare Wheel Trencher Chakra RS100 with related models in the same product category.
The model page helps buyers discuss site conditions, output requirements, carrier compatibility, timeline, and quotation needs with Autocracy Machinery.
Wheel Trencher Chakra RS100 for planned field deployment should be reviewed as part of the full site workflow, not only as a standalone equipment listing. Buyers usually need to compare the required output, route length, working width, access condition, operator availability, and delivery timeline before selecting a machine for field deployment.
Wheel Trencher Chakra RS100 is a attachment in the Trenchers range, designed to help project teams understand equipment fit, specifications, applications, and support options before work begins. This makes the page useful for early project planning, tender comparison, contractor discussions, and internal equipment shortlisting where teams need clear information before speaking with a supplier.
Concrete cutter The same review should also include soil or surface condition, transport access, available carrier or tractor capacity, daily productivity expectation, service support, and the practical handoff between excavation, installation, backfilling, lifting, or finishing work.
Use the specifications and feature sections to compare Wheel Trencher Chakra RS100 with related models in the same product category. For infrastructure and utility projects, the equipment decision often affects crew size, fuel use, rework, route consistency, safety planning, and the number of machines required on site. A structured comparison helps avoid choosing a model only by headline specification.
The model page helps buyers discuss site conditions, output requirements, carrier compatibility, timeline, and quotation needs with Autocracy Machinery. Autocracy Machinery pages are organised to help project owners, EPC teams, contractors, municipalities, utilities, agriculture teams, and site managers connect product capability with real operating conditions before requesting a quote or brochure.
When evaluating Wheel Trencher Chakra RS100 for planned field deployment, teams can use the model information, media, specifications, application notes, and quote conversation together. This gives procurement and site teams a clearer basis for confirming fit, planning mobilisation, and preparing the next step with Autocracy Machinery.
A practical selection process also considers how the machine will move between work fronts, how operators will maintain output through the day, and how the surrounding crew will manage material handling, marking, inspection, and finishing work after the equipment completes its pass.
For many field projects, the right equipment choice is the one that balances specification, availability, maintenance access, and predictable output. Wheel Trencher Chakra RS100 for planned field deployment should therefore be discussed with both procurement teams and site supervisors before finalising the requirement.
Project teams can prepare a stronger quote request by sharing route length, expected depth or working range, ground condition, preferred carrier, transport limits, daily target, and any special constraints such as narrow access, road-edge work, finished surfaces, utilities, or active public areas.
The content on this page is intended to support that discussion with enough context to compare options, understand the application fit, and decide whether a standard model, attachment configuration, brochure review, or direct consultation is the right next step.
Autocracy Machinery supports buyers who need equipment for trenching, pole installation, material handling, aquatic work, agricultural operations, landscaping, water management, solar EPC activity, telecom routes, defence infrastructure, and general construction requirements.
Before mobilisation, teams should confirm safety practices, operator familiarity, service support, spare availability, site preparation, and the handoff between machine output and downstream work. That final check helps keep deployment practical once the equipment reaches the project site.
